Planning & Documentation

Single-Line Diagrams generated automatically

Turn your project data into a compliant, submission-ready electrical schematic in minutes. No CAD skills and no separate software necessary. The diagram is generated from your existing project, there’s nothing extra to maintain, and nothing to forget.

Get a free trial

⭐⭐⭐⭐⭐ Trusted by 2,500+ renewable energy professionals

WHY IT MATTERS

One document almost every market requires, still drawn by hand.

Single Line Diagrams are required in almost every country and region, either to comply with local regulations or to obtain permitting documents and grid connection approval. Creating them manually is usually time-consuming and error-prone and a single missing detail can hold up an entire project.

WHY ETURNITY EXPERT

From project data to compliant diagram, automatically.

No separate software required

Skip the extra licence for dedicated SLD tools. One platform, one source of project data, one diagram that's always in sync.

Fewer errors, fewer iterations

Getting every detail right by hand is hard under daily pressure. Automation removes the small mistakes that cause delays and rework, including grid connection permits that stall on a faulty diagram.

One connected process, start to finish

Single Line Diagram, string plan and roof plans work together end to end, no time-consuming handover from sales to project manager or planner.

A huge time saver

What used to take hours of manual drawing is generated almost fully automatically, a genuine step change for daily project work.

Built for PV, not generic CAD

A symbol library focused on what a PV system actually needs, so you spend time on the project, not learning a CAD tool.

Ready when you need it

Generated from live project data, update the design, and your diagram updates with it.

Start a free trial

Three steps from project to compliant PDF

1. Your project data is already there

Modules, inverters, strings and components are already defined in Eturnity from planning, nothing to re-enter.

2. Eturnity draws the diagram

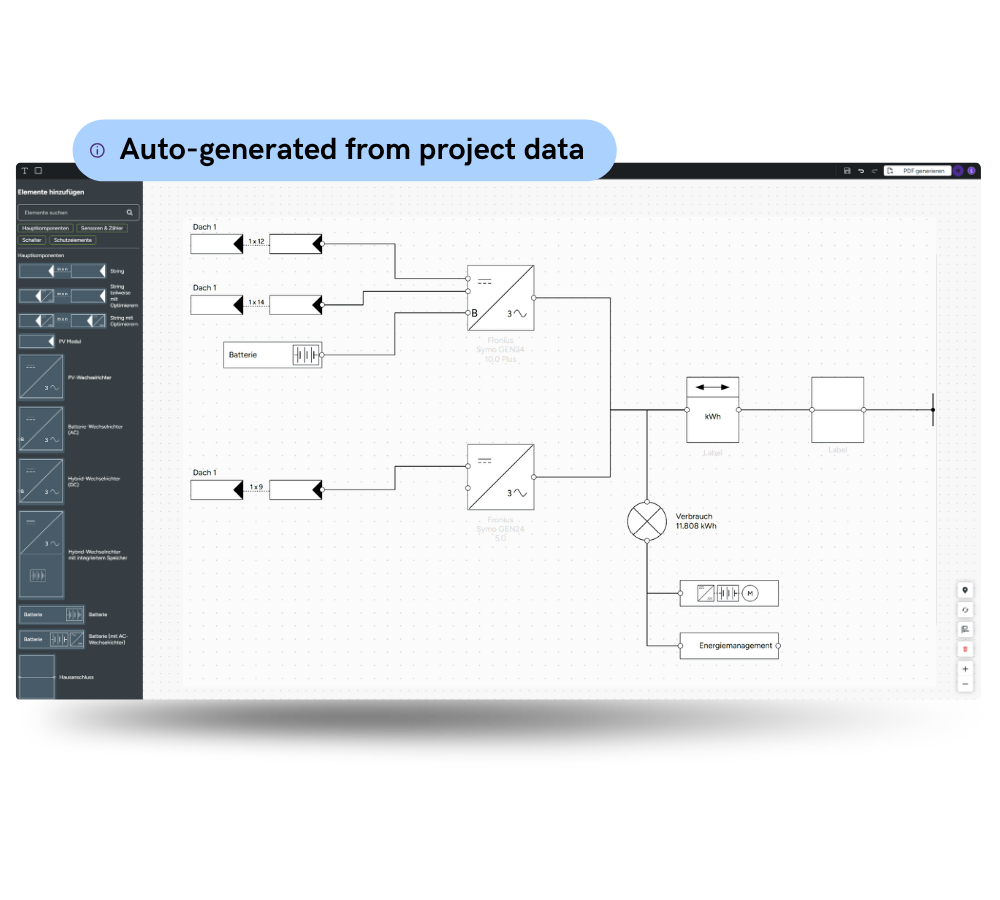

The Single Line Diagram is generated automatically, matching your most current project data, on a true drawing canvas, not a rigid template.

3. Fine-tune and export

Adjust freely where needed, then export a titled, submission-ready PDF for permitting, grid connection or the system manual.

Competitive advantage

Automated. Yet still flexible.

Most tools force a trade-off between speed and control. Eturnity’s Single-Line Diagram is built on a true graphical canvas, so automation never comes at the cost of flexibility.

Capability

Eturnity

Typical SLD Tools

True graphical drawing canvas

Click & configure only

Hybrid inverter + integrated battery symbol

One-click PDF export with auto-filled title

but title entered manually

PV-focused symbol library

but limited

Updates automatically with project changes

Technical Roof Plans

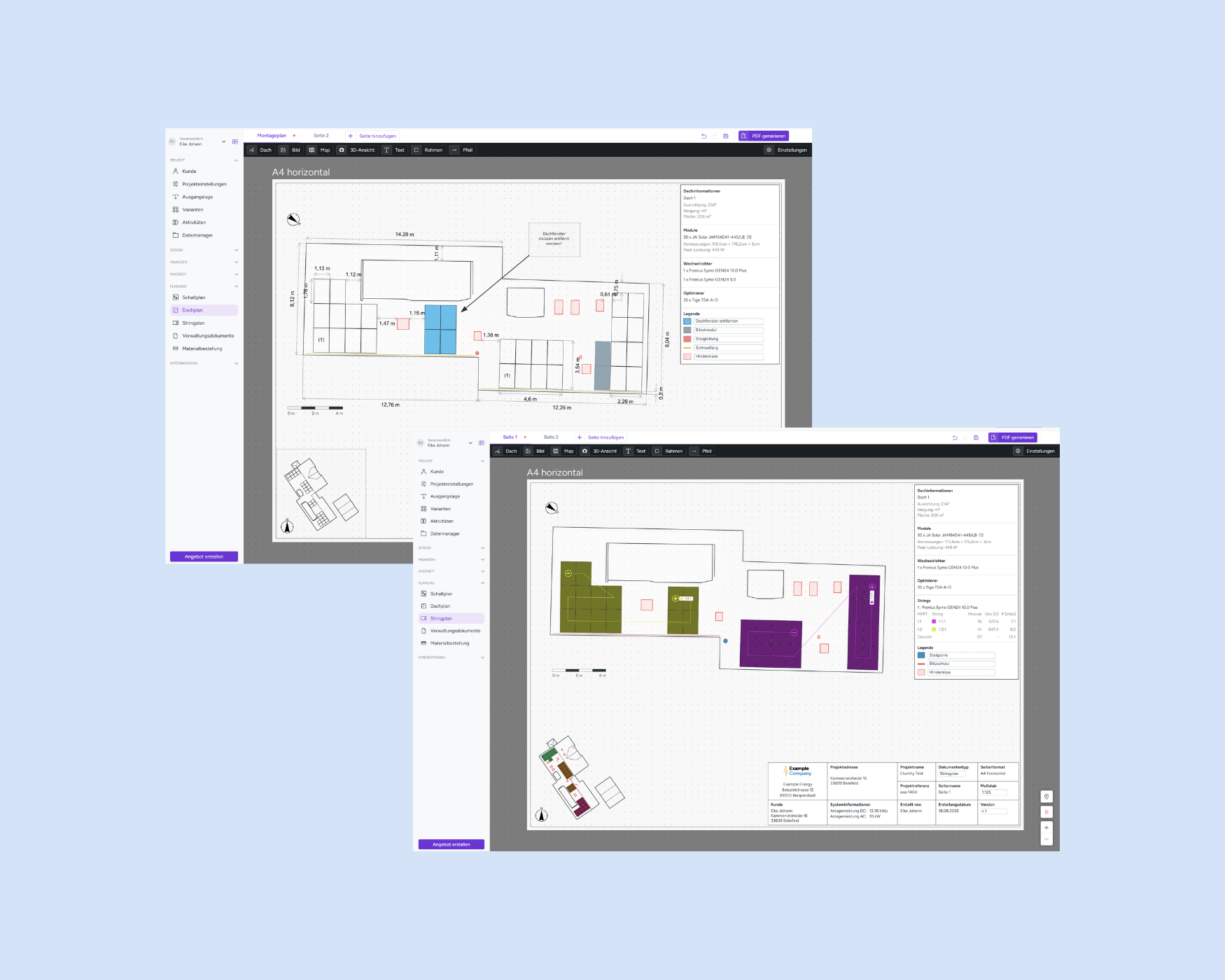

Complete your technical documentation with matching roof layouts. Roof dimensions, module positions and orientation are pulled directly from your project, the same data your Single-Line Diagram already uses, so both stay consistent without extra work. Generate precise, permitting-ready roof plans alongside your Single-Line Diagram for complete documentation.

Learn more

St.Galler Stadtwerke

“We really appreciate the new roof plan feature in Eturnity Expert. Immediately after its implementation, we were able to significantly reduce the effort required to prepare building permit applications for our facilities. The plans were accepted by the authorities without any questions, saving us the effort of creating a CAD drawing.”

Patrick Stark
